Exponential and related functions

Exponential function \(\exp(x) = e^x\)

ctx.exp(z)

where ctx is ctx_pm (see Python contexts for details), ctx53, ctxcpp, ctxflint (see .NET contexts for details).

Returns \(\exp(x)\), the exponential function of \(x\). See also Wikipedia [1342], MathWorld [919], NIST [515], Ehrhardt [309] (4.2.34), Flint [804], Flint [794], Mpmath [573].

\[\exp(x) = \sum_{k = 0}^{\infty} \frac{x^k}{k!} = 1 + x + \frac{x^2}{2} + \frac{x^3}{6} + \frac{x^4}{24} + \cdots\]

For complex numbers, the exponential function satisfies

\[\exp(x + iy) = e^x (\cos y + i \sin y).\]

\(\quad\) \(\quad\)

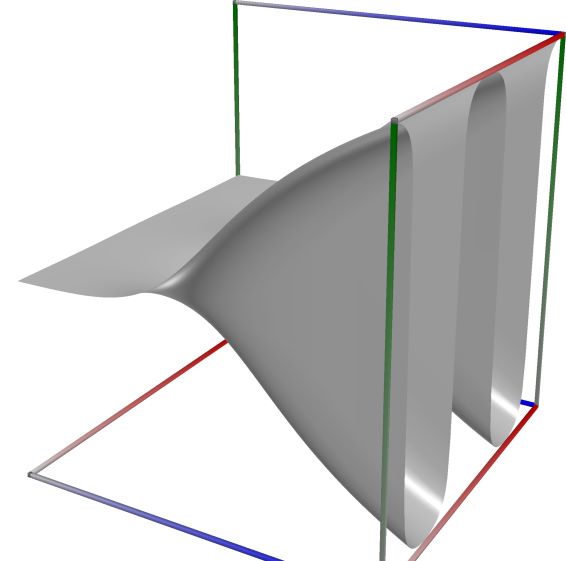

Left figure: real part of the Exp function. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

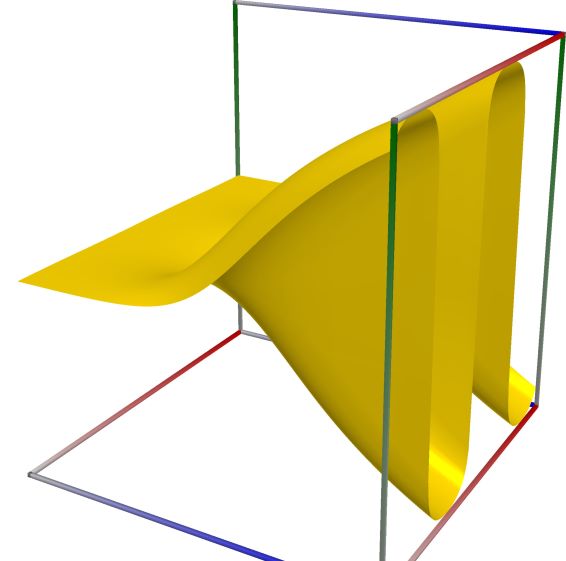

Middle figure: imaginary part of the Exp function. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

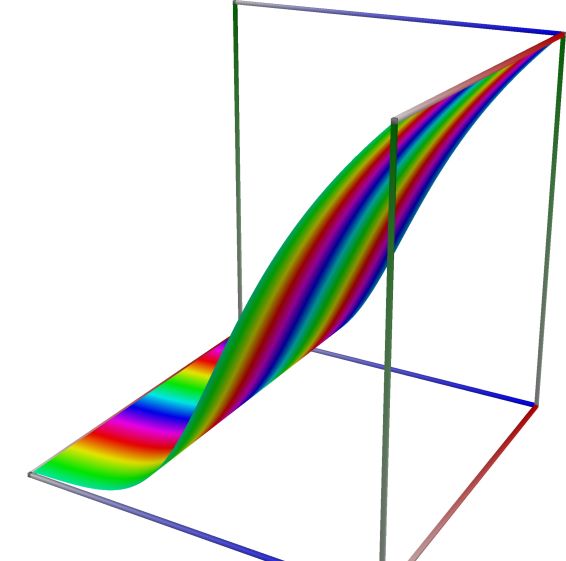

Right figure: absolute value of the Exp function, with color-coded phase. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

Note

The function is implemented as follows: mpm.exp and fpm.exp call mp.exp from mpmath; the functions ipm.exp and dpm.exp call iv.exp from mpmath; ; the functions gpm.exp and apm.exp call the matching functions from the Gmpy2 and Python-FLINT libraries; in single, double and extended precision, the C++ standard library is called for real and complex functions, except for math?53, where the damath functions are called; in fixed precision above extended, the matching Boost Multiprecision functions are called; mreal.exp calls the MPFR funcion mpfr_exp, and mcplx.exp calls the MPC funcion mpc_exp; ireal.exp calls the MPFI funcion mpfi_exp, and icplx.exp calls the MPFCI funcion mpfci_exp; dreal.exp calls the libmpdec function mpd_exp; otherwise the matching ctxflint.exp function is called.

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.Exp(0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.Exp('0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.Exp(0.5)
GprT('5.2359877559829887307E-1')
>>> Gpr.Exp('0.51')
GprT('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import fpm, mpm, ipm, dec, gmp, apm; ctxall = [fpm, mpm, ipm, dec, gmp, apm]
>>> res = []; x = 300
>>> for ctx in ctxall: ctx.dps = 40; res.append(ctx.exp(x));
>>> mpm.show(res)
fpm: 1.94242639524126E+130
mpm: 1.942426395241255936584208836017699219366e+130
ipm: 1.942426395241255936584208836017699219366e+130 (6.554e-40%)
dec: 1.942426395241255936584208836017699219366E+130
gmp: 1.942426395241255936584208836017699219366E+130
apm:[1.94242639524125593658420883601769921936619e+130 +/- 3.05e+89]

The following example with complex input shows that the relative error of the real or imaginary component can be quite high in certain situations, in this case input with the imaginary component near \(\pi/2\) (all digits of the dec output are correct):

>>> from xlcalcnet import fpm, mpm, ipm, dec, gmp, apm; ctxall = [fpm, mpm, ipm, dec, gmp, apm]
>>> res = []; z = '3 + 1.57079632679489j'
>>> for ctx in ctxall: ctx.dps = 20; res.append(ctx.exp(z));
>>> mpm.show(res)
fpm: 1.35026437749597E-13                      + 2.00855369231877E+01j
mpm: 1.3295080411583145903e-13                 + 2.0085536923187667741e+1j
ipm: 1.3295082112894299626e-13 (1.28e-5%)      + 2.0085536923187667741e+1 (6.747e-20%)j
dec: 1.3295081511495773724E-13                 + 2.0085536923187667741E+1j
gmp: 1.3295080411583145903E-13                 + 2.0085536923187667741E+01j
apm:[1.329508381420545334922e-13 +/- 3.41e-20] +[20.0855369231876677409 +/- 8.34e-20]j

An example with large input:

>>> mz = mpm.exp("-1.343E+46 - 2.34636E+34j")
>>> mpm.real(mz)
mpf('-1.0548252324045361275536e-5832574891960672045353076455441726603805350981')
>>> mpm.imag(mz)
mpf('+2.8351474115329724405596e-5832574891960672045353076455441726603805350981')

Evaluation is also supported for interval arguments with wide intervals:

>>> from xlcalcnet import dec, mpm, ipm, mp
>>> ipm.dps = 25
>>> ipm.exp([-mp.inf,0])
mpi('0.0', '1.0')
>>> ipm.exp([0,1])
mpi('1.0', '2.718281828459045235360287496')

Auxiliary function \(\mathrm{expj}(x) = e^{ix}\)

ctx.expj(z)

where ctx is math53, mathc53, ctxcpp, ctxflint.

Note: mathc53.Cis(z)

Returns \(e^{iz} = \cos(z) + i \sin(z)\). See also Wikipedia [1492], MathWorld [1094], Mpmath [752].

An example in Python

>>> from xlcalcnet import XComplex
>>> XComplex.Expj(0.5)
XComplex('5.2359877559829887307E-1')
>>> XComplex.Expj('0.1')
XComplex('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpc
>>> Gpc.Expj(0.5)
Gpc('5.2359877559829887307E-1')
>>> Gpc.Expj('0.1')
Gpc('5.3518479027559984754E-1')

Returns \(e^{iz} = \cos(z) + i \sin(z)\). See also Wikipedia [1492], MathWorld [1094].

An example with real input (the output is always complex):

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 20; x = '1.57079632679489'
>>> \mathrm{d}x = dec.expj(x); mx = mpm.expj(x); ix = ipm.expj(x)
>>> mpm.show([\mathrm{d}x, mx, ix], aligned=True)
dec: 6.6192313216916397514E-15            + 1.0000000000000000000E+0j
mpm: 6.6192307740773877514e-15            + 1.0000000000000000000e+0j
ipm: 6.6192316211103350057e-15 (1.28e-5%) + 1.0000000000000000000e+0 (4.235e-20%)j

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 20; x = '1.57079632679489'
>>> fx = fpm.expj(x); gx = gmp.expj(x); ax = apm.expj(x)
>>> mpm.show([fx, gx, ax], aligned=True)
fpm: 6.7225704877083068166E-15            + 1.0000000000000000000E+00j
gmp: 6.6192307740773877514E-15            + 1.0000000000000000000E+00j
apm: 6.6192313299427593871e-15 (1.32e-5%) + 1.0000000000000000000e+0 (1.271e-19%)j

An example with complex input:

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 20; z = '3 + 1.57079632679489j'
>>> \mathrm{d}z = dec.expj(z); mz = mpm.expj(z); iz = ipm.expj(z)
>>> mpm.show([\mathrm{d}z, mz, iz], aligned=True)
dec: -2.0579922078373506286E-1               + 2.9335967490101498289E-2j
mpm: -2.0579922078373506286e-1               + 2.9335967490101498289e-2j
ipm: -2.0579922078373506286e-1 (-3.293e-18%) + 2.9335967490101498289e-2 (4.331e-18%)j

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 20; z = '3 + 1.57079632679489j'
>>> fz = fpm.expj(z); gz = gmp.expj(z); az = apm.expj(z)
>>> mpm.show([fz, gz, az], aligned=True)
fpm: -2.0579922078373558136E-01              + 2.9335967490101533262E-02j
gmp: -2.0579922078373506285E-01              + 2.9335967490101498289E-02j
apm: -2.0579922078373506284e-1 (-3.457e-17%) + 2.9335967490101498293e-2 (3.609e-17%)j

Examples from mpmath:

>>> from xlcalcnet import *
>>> mp.dps = 25; mp.pretty = True
>>> expj(0)
(1.0 + 0.0j)
>>> expj(-1)
(0.5403023058681397174009366 - 0.8414709848078965066525023j)
>>> expj(j)
(0.3678794411714423215955238 + 0.0j)
>>> expj(1+j)
(0.1987661103464129406288032 + 0.3095598756531121984439128j)

Auxiliary function \(\mathrm{expjpi}(x) = e^{i \pi x} = (-1)^x\)

ctx.expjpi(z)

where ctx is math53, mathc53, ctxcpp or ctxflint.

Returns \(e^{i \pi z} = \cos(\pi z) + i \sin(\pi z)\). See also Wikipedia [1492], MathWorld [1094], Flint [794], Mpmath [753].

Evaluation is accurate near zeros (see also cospi() and sinpi()):

An example in Python

>>> from xlcalcnet import XComplex
>>> XComplex.Expjpi(0.5)
XComplex('5.2359877559829887307E-1')
>>> XComplex.Expjpi('0.1')
XComplex('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpc
>>> Gpc.Expjpi(0.5)
Gpc('5.2359877559829887307E-1')
>>> Gpc.Expjpi('0.1')
Gpc('5.3518479027559984754E-1')

An example with real input (the output is always complex):

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 20; x = '1.0'
>>> \mathrm{d}x = dec.expjpi(x); mx = mpm.expjpi(x); ix = ipm.expjpi(x)
>>> mpm.show([\mathrm{d}x, mx, ix], aligned=True)
dec: -1.0000000000000000000E+0               - 3.7356616720497115803E-20j
mpm: -1.0000000000000000000e+0               + 0.0e+0j
ipm: -1.0000000000000000000e+0 (-4.235e-20%) - 3.8307114865123115489e-20 (-4.422%)j

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 20; x = '1.0'
>>> fx = fpm.expjpi(x); gx = gmp.expjpi(x); ax = apm.expjpi(x)
>>> mpm.show([fx, gx, ax], aligned=True)
fpm: -1.0000000000000000000E+00 + 1.2246467991473532072E-16j
gmp: -1.0000000000000000000E+00 + 6.5640070857470010853E-22j
apm: 0.0e+0 (0.0%)

An example with complex input:

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 20; z = '3 + 1.0j'
>>> \mathrm{d}z = dec.expjpi(z); mz = mpm.expjpi(z); iz = ipm.expjpi(z)
>>> mpm.show([\mathrm{d}z, mz, iz], aligned=True)
dec: -4.3213918263772249773E-2               - 4.8429773447118903534E-21j
mpm: -4.3213918263772249774e-2               + 0.0e+0j
ipm: -4.3213918263772249764e-2 (-1.254e-16%) - 5.0394088172058346211e-21 (-3112.0%)j

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 20; z = '3 + 1.0j'
>>> fz = fpm.expjpi(z); gz = gmp.expjpi(z); az = apm.expjpi(z)
>>> mpm.show([fz, gz, az], aligned=True)
fpm: -4.3213918263770523254E-02              + 1.5876536004102792749E-17j
gmp: -4.3213918263772249778E-02              - 6.1317510491589947464E-23j
apm: -4.3213918263772249774e-2 (-6.125e-20%) + 0.0e+0 (0.0%)j

Exponential function with base \(10\), \(\mathrm{exp10}(x) = 10^z\)

ctx.exp10(x)

where ctx is math53, mathc53, ctxcpp or ctxflint.

Returns \(\mathrm{exp10}(x) = 10^z = \exp(x \cdot \log(10))\), the base-10 exponential function of \(z\). See also Wikipedia [1348], MathWorld [919], NIST [515], Ehrhardt [309] (4.2.36), Mpmath [579].

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.Exp10(0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.Exp10('0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.Exp10(0.5)
Gpr('5.2359877559829887307E-1')
>>> Gpr.Exp10('0.51')
Gpr('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 40; x = 300
>>> \mathrm{d}x = dec.exp10(x); mx = mpm.exp10(x); ix = ipm.exp10(x)
>>> mpm.show([\mathrm{d}x, mx, ix])
dec:  1.000000000000000000000000000000000000000E+300
mpm:  1.000000000000000000000000000000000000006e+300
ipm:  1.000000000000000000000000000000000000000e+300 (1.764e-36%)

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 40; x = 300
>>> fx = fpm.exp10(x); gx = gmp.exp10(x); ax = apm.exp10(x)
>>> mpm.show([fx, gx, ax])
fpm:  1e+300
gmp:  1.000000000000000000000000000000000000000E+300
apm:  9.999999999999999999999999999999999999999e+299 (2.076e-38%)

The following example with complex input shows that the relative error can be high in double precision:

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 20; z = '3 + 1.57079632679489j'
>>> \mathrm{d}z = dec.exp10(z); mz = mpm.exp10(z); iz = ipm.exp10(z)
>>> mpm.show([\mathrm{d}z, mz, iz], aligned=True)
dec: -8.8915568479718223597E+2               - 4.5760481661894022373E+2j
mpm: -8.8915568479718223597e+2               - 4.5760481661894022374e+2j
ipm: -8.8915568479718223597e+2 (-1.073e-18%) - 4.5760481661894022373e+2 (-2.038e-18%)j

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 20; z = '3 + 1.57079632679489j'
>>> fz = fpm.exp10(z); gz = gmp.exp10(z); az = apm.exp10(z)
>>> mpm.show([fz, gz, az], aligned=True)
fpm: -8.8915568479718217532E+02              - 4.5760481661894021954E+02j
gmp: -8.8915568479718223597E+02              - 4.5760481661894022374E+02j
apm: -8.8915568479718223597e+2 (-1.951e-19%) - 4.5760481661894022373e+2 (-5.212e-19%)j

Exponential function with base \(2\), \(\mathrm{exp2}(x) = 2^x\)

ctx.exp2(x)

where ctx is math53, mathc53, ctxcpp or ctxflint.

Returns \(\mathrm{exp2}(x) = 2^x = \exp(x \cdot \log(2))\), the base-2 exponential function of \(x\). See also Wikipedia [1349], MathWorld [919], NIST [515], Ehrhardt [309] (4.2.35).

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.Exp2(0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.Exp2('0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.Exp2(0.5)
Gpr('5.2359877559829887307E-1')
>>> Gpr.Exp2('0.51')
Gpr('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 40; x = 300
>>> \mathrm{d}x = dec.exp2(x); mx = mpm.exp2(x); ix = ipm.exp2(x)
>>> mpm.show([\mathrm{d}x, mx, ix])
dec:  2.037035976334486086268445688409378161051E+90
mpm:  2.037035976334486086268445688409378161051e+90
ipm:  2.037035976334486086268445688409378161051e+90 (2.95e-37%)

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 40; x = 300
>>> fx = fpm.exp2(x); gx = gmp.exp2(x); ax = apm.exp2(x)
>>> mpm.show([fx, gx, ax])
fpm:  2.037035976334486e+90
gmp:  2.037035976334486086268445688409378161051E+90
apm:  2.037035976334486086268445688409378161051e+90 (6.084e-38%)

The following example with complex input shows that the relative error can be high in double precision:

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 20; z = '3 + 1.57079632679489j'
>>> \mathrm{d}z = dec.exp2(z); mz = mpm.exp2(z); iz = ipm.exp2(z)
>>> mpm.show([\mathrm{d}z, mz, iz], aligned=True)
dec: 3.7084411872640180216E+0              + 7.0885445586949540188E+0j
mpm: 3.7084411872640180216e+0              + 7.0885445586949540188e+0j
ipm: 3.7084411872640180216e+0 (8.679e-19%) + 7.0885445586949540188e+0 (4.78e-19%)j

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 20; z = '3 + 1.57079632679489j'
>>> fz = fpm.exp2(z); gz = gmp.exp2(z); az = apm.exp2(z)
>>> mpm.show([fz, gz, az], aligned=True)
fpm: 3.7084411872640181684E+00             + 7.0885445586949540342E+00j
gmp: 3.7084411872640180216E+00             + 7.0885445586949540188E+00j
apm: 3.7084411872640180216e+0 (1.827e-19%) + 7.0885445586949540188e+0 (9.559e-20%)j

Auxiliary function \(\mathrm{expm1}(x) = e^x-1\)

ctx.expm1(x)

where ctx is math53, mathc53, ctxcpp or ctxflint.

Returns \(\mathrm{expm1}(x) = \exp(x)-1 = e^x-1\), computed accurately also for small \(x\). See also Wikipedia [1341], MathWorld [919], NIST [515], BoostMath [81], Ehrhardt [309] (4.2.37), Flint [804], Flint [794], Mpmath [574].

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.Expm1(0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.Expm1('0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.Expm1(0.5)
Gpr('5.2359877559829887307E-1')
>>> Gpr.Expm1('0.51')
Gpr('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 40; x = '1.0E-100'
>>> \mathrm{d}x = dec.expm1(x); mx = mpm.expm1(x); ix = ipm.expm1(x)
>>> mpm.show([\mathrm{d}x, mx, ix])
dec:  1.000000000000000000000000000000000000000E-100
mpm:  1.000000000000000000000000000000000000000e-100
ipm:  1.000000000000000000000000000000000000000e-100 (1.312e-39%)

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 40; x = '1.0E-100'
>>> fx = fpm.expm1(x); gx = gmp.expm1(x); ax = apm.expm1(x)
>>> mpm.show([fx, gx, ax])
fpm:  1e-100
gmp:  1.000000000000000000000000000000000000000E-100
apm:  1.000000000000000000000000000000000000000e-100 (1.312e-39%)

The following example with complex input shows that the relative error can be high in double precision:

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 20; z = '1.0E-100 + 1.57079632679489j'
>>> \mathrm{d}z = dec.expm1(z); mz = mpm.expm1(z); iz = ipm.expm1(z)
>>> mpm.show([\mathrm{d}z, mz, iz], aligned=True)
dec: -9.9999999999999338077E-1               + 1.0000000000000000000E+0j
mpm: -9.9999999999999338077e-1               + 1.0000000000000000000e+0j
ipm: -9.9999999999999338077e-1 (-1.271e-19%) + 1.0000000000000000000e+0 (4.235e-20%)j

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 20; z = '1.0E-100 + 1.57079632679489j'
>>> fz = fpm.expm1(z); gz = gmp.expm1(z); az = apm.expm1(z)
>>> mpm.show([fz, gz, az], aligned=True)
fpm: -9.99999999999993E-01                   + 1.00000000000000E+00j
gmp: -9.9999999999999338077E-01              + 1.0000000000000000000E+00j
apm: -9.9999999999999338077e-1 (-1.694e-19%) + 1.0000000000000000000e+0 (1.271e-19%)j

Auxiliary function \(\mathrm{exp10m1}(x) = 10^x - 1\)

ctx.exp10m1(x)

where ctx is math53, mathc53, ctxcpp or ctxflint.

Returns \(10^x - 1 = \mathrm{expm1}(x \cdot \log(10))\). See also expm1().

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.Exp10m1(0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.Exp10m1('0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.Exp10m1(0.5)
Gpr('5.2359877559829887307E-1')
>>> Gpr.Exp10m1('0.51')
Gpr('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 40; x = '1.0E-100'
>>> \mathrm{d}x = dec.exp10m1(x); mx = mpm.exp10m1(x); ix = ipm.exp10m1(x)
>>> mpm.show([\mathrm{d}x, mx, ix])
dec:  2.302585092994045684017991454684364207601E-100
mpm:  2.302585092994045684017991454684364207601e-100
ipm:  2.302585092994045684017991454684364207601e-100 (3.419e-39%)

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 40; x = '1.0E-100'
>>> fx = fpm.exp10m1(x); gx = gmp.exp10m1(x); ax = apm.exp10m1(x)
>>> mpm.show([fx, gx, ax])
fpm:  2.3025850929940455e-100
gmp:  2.302585092994045684017991454684364207601E-100
apm:  2.302585092994045684017991454684364207601e-100 (3.419e-39%)

The following example with complex input shows that the relative error can be high in double precision:

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 20; z = '1.0E-100 + 1.57079632679489j'
>>> \mathrm{d}z = dec.exp10m1(z); mz = mpm.exp10m1(z); iz = ipm.exp10m1(z)
>>> mpm.show([\mathrm{d}z, mz, iz], aligned=True)
dec: -1.8891556847971822360E+0               - 4.5760481661894022373E-1j
mpm: -1.8891556847971822360e+0               - 4.5760481661894022374e-1j
ipm: -1.8891556847971822360e+0 (-2.242e-19%) - 4.5760481661894022373e-1 (-1.388e-18%)j

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 20; z = '1.0E-100 + 1.57079632679489j'
>>> fz = fpm.exp10m1(z); gz = gmp.exp10m1(z); az = apm.exp10m1(z)
>>> mpm.show([fz, gz, az], aligned=True)
fpm: -9.99999999999993E-01                   + 1.00000000000000E+00j
gmp: -9.9999999999999338077E-01              + 1.0000000000000000000E+00j
apm: -9.9999999999999338077e-1 (-1.694e-19%) + 1.0000000000000000000e+0 (1.271e-19%)j

Auxiliary function \(\mathrm{exp2m1}(x) = 2^x - 1\)

ctx.exp2m1(x)

where ctx is math53, mathc53, ctxcpp or ctxflint.

Returns \(2^x - 1 = \mathrm{expm1}(x \cdot \log(2))\). See also expm1().

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.Exp2m1(0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.Exp2m1('0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.Exp2m1(0.5)
Gpr('5.2359877559829887307E-1')
>>> Gpr.Exp2m1('0.51')
Gpr('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 40; x = '1.0E-100'
>>> \mathrm{d}x = dec.exp2m1(x); mx = mpm.exp2m1(x); ix = ipm.exp2m1(x)
>>> mpm.show([\mathrm{d}x, mx, ix])
dec:  6.931471805599453094172321214581765680755E-101
mpm:  6.931471805599453094172321214581765680755e-101
ipm:  6.931471805599453094172321214581765680755e-101 (2.839e-39%)

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 40; x = '1.0E-100'
>>> fx = fpm.exp2m1(x); gx = gmp.exp2m1(x); ax = apm.exp2m1(x)
>>> mpm.show([fx, gx, ax])
fpm:  6.931471805599454e-101
gmp:  6.931471805599453094172321214581765680755E-101
apm:  6.931471805599453094172321214581765680755e-101 (3.786e-39%)

The following example with complex input shows that the relative error can be high in double precision:

>>> from xlcalcnet import dec, mpm, ipm
>>> mpm.dps = 20; z = '1.0E-100 + 1.57079632679489j'
>>> \mathrm{d}z = dec.exp2m1(z); mz = mpm.exp2m1(z); iz = ipm.exp2m1(z)
>>> mpm.show([\mathrm{d}z, mz, iz], aligned=True)
dec: -5.3644485159199774730E-1               + 8.8606806983686925235E-1j
mpm: -5.3644485159199774730e-1               + 8.8606806983686925235e-1j
ipm: -5.3644485159199774730e-1 (-5.526e-19%) + 8.8606806983686925235e-1 (1.434e-19%)j

>>> from xlcalcnet import mpm, fpm, gmp, apm
>>> mpm.dps = 20; z = '1.0E-100 + 1.57079632679489j'
>>> fz = fpm.exp2m1(z); gz = gmp.exp2m1(z); az = apm.exp2m1(z)
>>> mpm.show([fz, gz, az], aligned=True)
fpm: -5.36444851591998E-01                   + 8.86068069836869E-01j
gmp: -5.3644485159199774730E-01              + 8.8606806983686925235E-01j
apm: -5.3644485159199774726e-1 (-6.316e-19%) + 8.8606806983686925232e-1 (2.39e-19%)j
