Error function and related functions

Error function, \(\mathrm{erf}(x)\)

ctx.erf(x)

where ctx is math53, mathc53, ctxboost, ctxflint.

Returns the real error function \(\displaystyle \mathrm{erf}(x) = \frac{2}{\sqrt \pi} \int_0^x \exp(-t^2) \mathrm{d}t\). See also BoostMath [100], BoostMath [80], Wikipedia [1340], MathWorld [916], NIST [843], Ehrhardt [309] (4.2.32), Flint [803], Flint [793], Mpmath [571].

This function returns the value of the error function defined by

\[\text{erf}(z) = \frac{2}{\sqrt{\pi}} \int_0^x e^{-z^2} \mathrm{d}t = \frac{2 z}{\sqrt{\pi}} {}_1F_1 \left(\tfrac{1}{2}, \tfrac{3}{2}, -z^2 \right).\]

\(\quad\) \(\quad\)

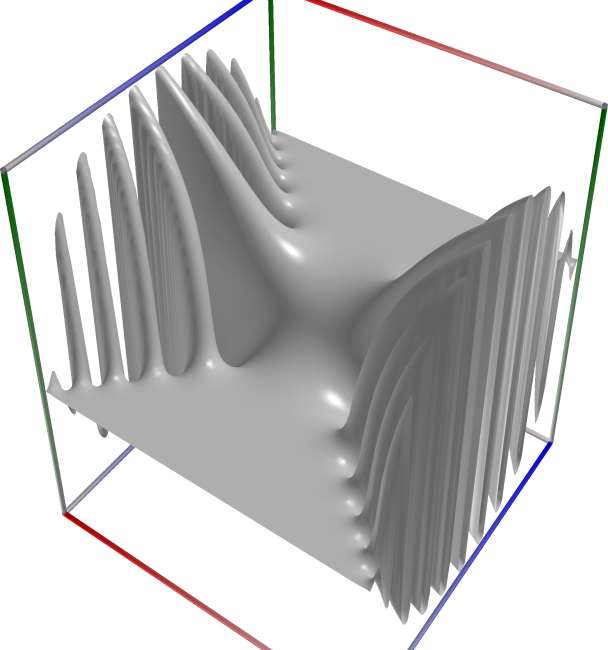

Left figure: real part of the Erf function. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

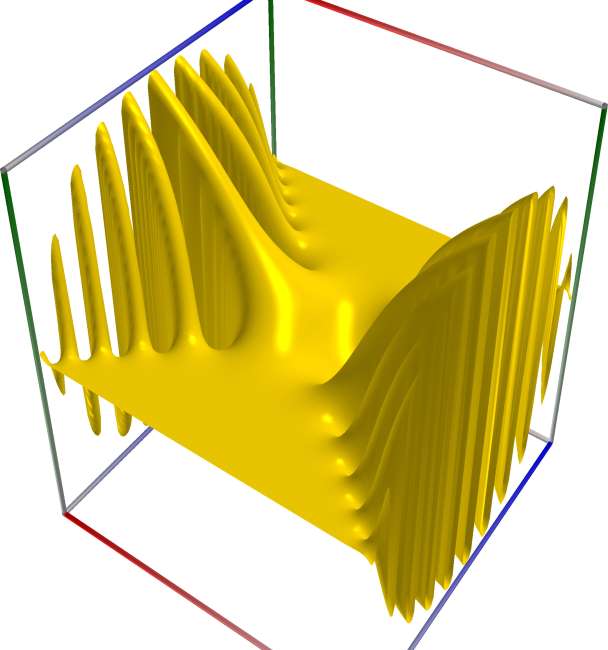

Middle figure: imaginary part of the Erf function. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

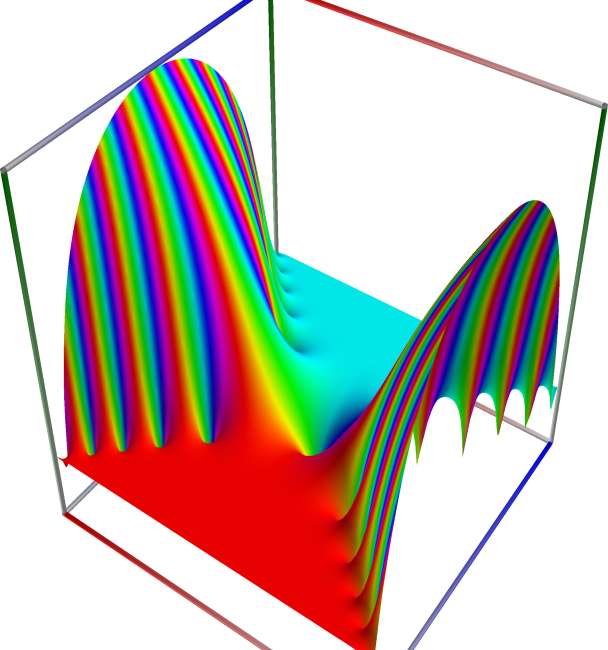

Right figure: absolute value of the Erf function, with color-coded phase. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.Dawson(0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.Dawson('0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.Dawson(0.5)
Gpr('5.2359877559829887307E-1')
>>> Gpr.Dawson('0.51')
Gpr('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 40; x = 3.0
>>> \mathrm{d}x = dec.erf(x); mx = mpm.erf(x); gx = gmp.erf(x)
>>> fx = fpm.erf(x); ax = apm.erf(x)
>>> mpm.show([\mathrm{d}x, mx, gx, fx, ax])
dec:  9.999779095030014145586272238704176796201E-1
mpm:  9.999779095030014145586272238704176796201e-1
gmp:  9.999779095030014145586272238704176796201E-01
fpm:  9.99977909503001E-01
apm:  9.999779095030014145586272238704176796202e-1 (5.74e-40%)

An example with complex input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 20; z = '3.0 + 4.0j'
>>> \mathrm{d}z = dec.erf(z); mz = mpm.erf(z); gz = gmp.erf(z)
>>> fz = fpm.erf(z); az = apm.erf(z)
>>> mpm.show([\mathrm{d}z, mz, gz, fz, az], aligned=True)
dec: -1.2018699139507944410E+2               - 2.7750337293623902498E+1j
mpm: -1.2018699139507944410e+2               - 2.7750337293623902498e+1j
gmp: -1.2018699139507944410E+02              - 2.7750337293623902498E+01j
fpm: -1.20186991395079E+02                   - 2.77503372936239E+01j
apm: -1.2018699139507944410e+2 (-9.021e-20%) - 2.7750337293623902498e+1 (-4.884e-20%)j

Complementary error function, \(\mathrm{erfc}(x)\)

ctx.erfc(x)

where ctx is math53, mathc53, ctxboost, ctxflint.

Returns the complementary error function \(\displaystyle \mathrm{erfc}(x) = 1-\mathrm{erf}(x) = \frac{2}{\sqrt \pi} \int_x^{\infty} \exp(-t^2)\, \mathrm{d}t\).

See also BoostMath [80], Wikipedia [1337], MathWorld [917], NIST [843], MathWorld [1051], Ehrhardt [309] (3.3.5), Ehrhardt [309] (4.2.33), Mpmath [570].

Returns the value of the complementary error function defined by

\[\text{erfc}(x) = 1-\text{erfc}(x) = \frac{2}{\sqrt{\pi}} \int_x^\infty e^{-x^2} \mathrm{d}t,\]

\(\quad\) \(\quad\)

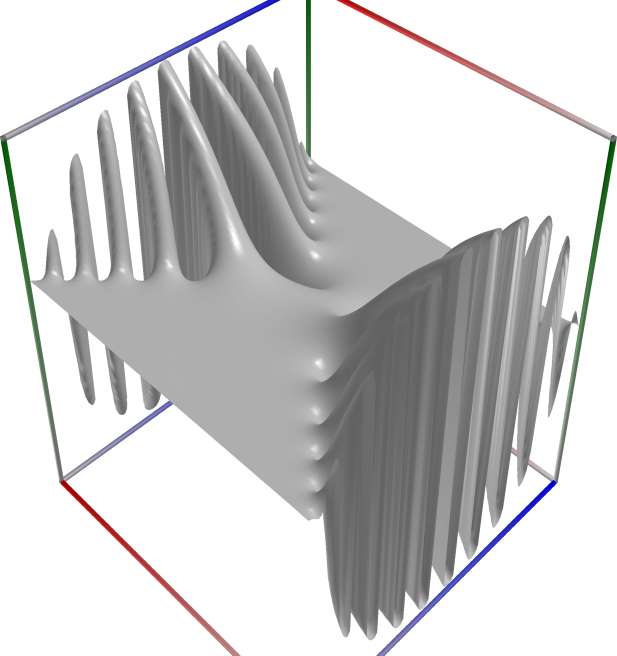

Left figure: real part of the Erfc function. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

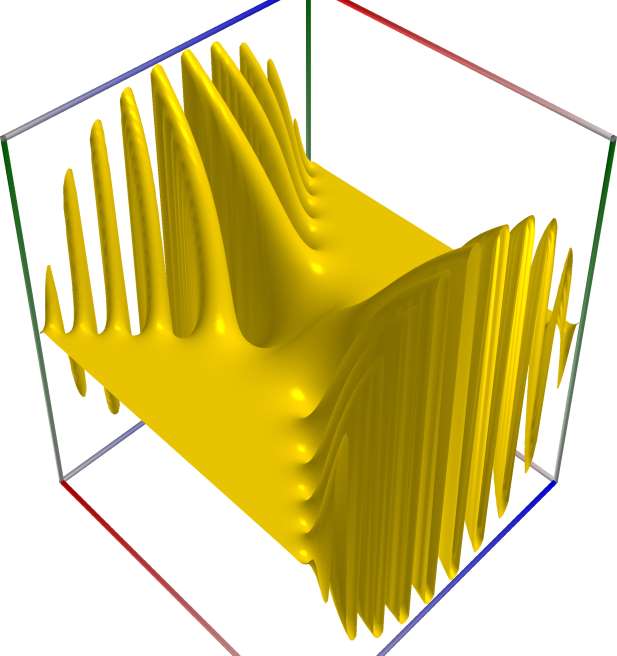

Middle figure: imaginary part of the Erfc function. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

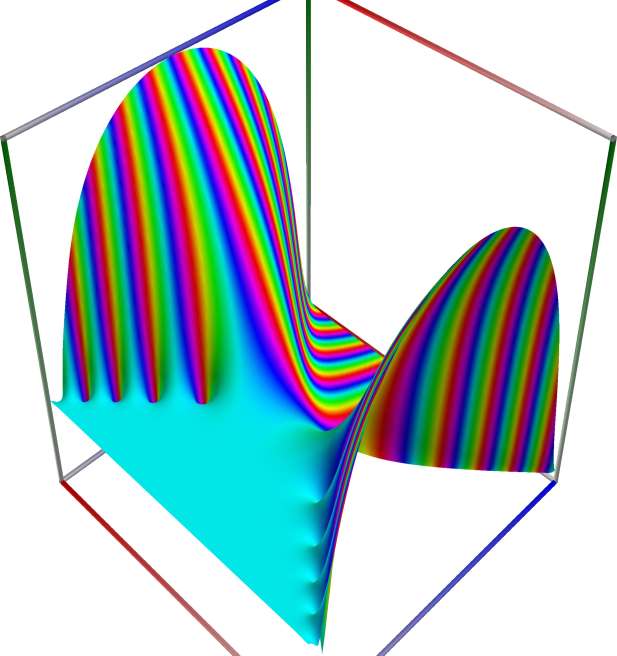

Right figure: absolute value of the Erfc function, with color-coded phase. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.Erfc(0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.Erfc('0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.Erfc(0.5)
Gpr('5.2359877559829887307E-1')
>>> Gpr.Erfc('0.51')
Gpr('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 40; x = 3.0
>>> \mathrm{d}x = dec.erfc(x); mx = mpm.erfc(x); gx = gmp.erfc(x)
>>> fx = fpm.erfc(x); ax = apm.erfc(x)
>>> mpm.show([\mathrm{d}x, mx, gx, fx, ax])
dec:  2.209049699858544137277612958232037984771E-5
mpm:  2.209049699858544137277612958232037984771e-5
gmp:  2.209049699858544137277612958232037984771E-05
fpm:  2.20904969985854E-05
apm:  2.209049699858544137277612958232037984771e-5 (1.586e-39%)

An example with complex input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 20; z = '3.0 + 4.0j'
>>> \mathrm{d}z = dec.erfc(z); mz = mpm.erfc(z); gz = gmp.erfc(z)
>>> fz = fpm.erfc(z); az = apm.erfc(z)
>>> mpm.show([\mathrm{d}z, mz, gz, fz, az], aligned=True)
dec: 1.2118699139507944410E+2              + 2.7750337293623902498E+1j
mpm: 1.2118699139507944410e+2              + 2.7750337293623902498e+1j
gmp: 1.2118699139507944410E+02             + 2.7750337293623902498E+01j
fpm: 1.21186991395079E+02                  + 2.77503372936239E+01j
apm: 1.2118699139507944410e+2 (8.947e-20%) + 2.7750337293623902498e+1 (4.884e-20%)j

Inverse of the real error function, \(\mathrm{erf}^{-1}(x)\)

ctx.erf_inv(q)

where ctx is math53, ctxcpp, ctxboost or ctxflint.

Returns the inverse of the real error function, satisfying \(\mathrm{erf}(\mathrm{erfinv}(x)) = \mathrm{erfinv}(\mathrm{erf}(x)) = x\). See also BoostMath [79], Wikipedia [1340], MathWorld [922], NIST [843], Flint [803], Mpmath [577].

This function is defined only for \(-1 \le x \le 1\).

>>> from xlcalcnet import dec, mpm, ipm, fpm, gmp, apm
>>> mpm.dps = 40; q = '0.007'
>>> \mathrm{d}x = dec.real_erfinv(q); mx = mpm.real_erfinv(q); ix = ipm.real_erfinv(q)
>>> fx = fpm.real_erfinv(q); gx = gmp.real_erfinv(q); ax = apm.real_erfinv(q)
>>> mpm.show([\mathrm{d}x, mx, ix, fx, gx, ax])
dec:  6.203668061000835402417689089205287381720E-3
mpm:  6.203668061000835531560785950441696784170e-3
ipm:  6.203668061000835531560785950441696784170e-3 (7.228e-40%)
fpm:  6.20366806100084E-03
gmp:  6.203668061000835315388357571464439388365E-03
apm:  6.203668061000835531560785950441696784170e-3 (7.228e-40%)

Inverse of the real complementory error function, \(\mathrm{erfc}^{-1}(x)\)

ctx.erfc_inv(q)

where ctx is math53, ctxcpp, ctxboost or ctxflint.

Returns the inverse of the real complementory error function, satisfying \(\mathrm{erfc}(\mathrm{erfcinv}(x)) = \mathrm{erfcinv}(\mathrm{erfc}(x)) = x\). See also BoostMath [79], Wikipedia [1337], MathWorld [923], NIST [843], Flint [803].

This function is defined only for \(-1 \le x \le 1\).

>>> from xlcalcnet import dec, mpm, ipm, fpm, gmp, apm
>>> mpm.dps = 40; q = '0.007'
>>> \mathrm{d}x = dec.real_erfcinv(q); mx = mpm.real_erfcinv(q); ix = ipm.real_erfcinv(q)
>>> fx = fpm.real_erfcinv(q); gx = gmp.real_erfcinv(q); ax = apm.real_erfcinv(q)
>>> mpm.show([gx, fx, ax])
dec:  1.906956864670945611335498085438891420125E+0
mpm:  1.906956864670945606433652487714446631717e+0
ipm:  1.906956864670945606433652487714446631717e+0 (6.02e-40%)
fpm:  1.90695686467095E+00
gmp:  1.906956864670945611335498085438891420125E+00
apm:  1.906956864670945606433652487714446631717e+0 (6.02e-40%)

Standard normal density function \(\phi(x)\)

ctx.ndens(x)

where ctx is math53, ctxcpp, ctxboost or ctxflint.

Note: also math53.erfZ(x), math53.ndens(x), mathc53.Ndens(x)

Returns the Gaussian density function \(\displaystyle \phi(z) = \frac{1}{\sqrt {2\pi}} \exp(-z^2)\). See also: Ehrhardt [309] (3.3.12.3) and (3.9.28).

An example:

>>> from xlcalcnet import dec, mpm, ipm, fpm, gmp, apm
>>> mpm.dps = 40; x = '1.2'; mu = '0'; sd = '1';
>>> \mathrm{d}x = dec.normal_pdf(x, mu, sd); mx = mpm.normal_pdf(x, mu, sd)
>>> ix = ipm.normal_pdf(x, mu, sd); fx = fpm.normal_pdf(x, mu, sd)
>>> gx = gmp.normal_pdf(x, mu, sd); ax = apm.normal_pdf(x, mu, sd)
>>> mpm.show([\mathrm{d}x, mx, ix, fx, gx, ax])
dec:  1.941860549832129404120911390335162607571E-1
mpm:  1.941860549832129404120911390335162607571e-1
ipm:  1.941860549832129404120911390335162607571e-1 (5.173e-39%)
fpm:  1.94186054983213E-01
gmp:  1.941860549832129404120911390335162607571E-01
ipm:  1.941860549832129404120911390335162607571e-1 (5.173e-39%)

Standard normal cumulative distribution function \(\Phi(x)\)

ctx.ndis(x)

where ctx is math53, ctxcpp, ctxboost or ctxflint.

Note: also math53.erfP(x), math53.ndis(x), mathc53.Ndis(x)

Returns the integral \(\displaystyle \Phi(z) = \frac{1}{\sqrt 2\pi} \int_{-\infty}^z \exp(-t^2)\, \mathrm{d}t = \frac{1}{2} \mathrm{erfc}\left(-\frac{z}{\sqrt{2}} \right)\).

See also BoostMath [80], Wikipedia [1337], MathWorld [917], NIST [843], MathWorld [1051], Ehrhardt [309] (3.3.12.1) and (3.9.28).

An example:

>>> from xlcalcnet import dec, mpm, ipm, fpm, gmp, apm
>>> mpm.dps = 40; x = '1.2'; mu = '0'; sd = '1';
>>> \mathrm{d}x = dec.normal_cdf(x, mu, sd); mx = mpm.normal_cdf(x, mu, sd)
>>> ix = ipm.normal_cdf(x, mu, sd); fx = fpm.normal_cdf(x, mu, sd)
>>> gx = gmp.normal_cdf(x, mu, sd); ax = apm.normal_cdf(x, mu, sd)
>>> mpm.show([\mathrm{d}x, mx, ix, fx, gx, ax])
dec:  8.849303297782917319777797930433648513245E-1
mpm:  8.849303297782917319777797930433648513246e-1
ipm:  8.849303297782917319777797930433648513245e-1 (6.486e-40%)
fpm:  8.84930329778292E-01
gmp:  8.849303297782917319777797930433648513246E-01
ipm:  8.849303297782917319777797930433648513246e-1 (1.297e-39%)

Imaginary error function, \(\mathrm{erfi}(x)\)

ctx.erfi(x)

where ctx is math53, mathc53, ctxflint.

Returns the imaginary error function \(\displaystyle \mathrm{erfi}(x) = \frac{2}{\sqrt \pi} \int_0^x \exp(t^2)\, \mathrm{d}t = \frac{2}{\sqrt \pi} e^{x^2} \mathrm{dawson}(x)\).

Returns the imaginary error function \(\displaystyle \mathrm{erfi}(z) = -i \mathrm{erf}(i z)\).

See also Wikipedia [1345], MathWorld [918], Ehrhardt [309] (3.3.8), Flint [803], Flint [793], Mpmath [572].

The function is defined as:

\[\text{erfi}(x) = \frac{1}{i} \text{erf}(ix).\]

\(\text{erfi}(x)\) is computed using the Dawson integral as

\[\text{erfi}(x) = \frac{2}{\sqrt{\pi}} e^{x^2} \text{dawson}(x).\]

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.Erfi(0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.Erfi('0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.Erfi(0.5)
Gpr('5.2359877559829887307E-1')
>>> Gpr.Erfi('0.51')
Gpr('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 40; x = 3.0
>>> \mathrm{d}x = dec.erfi(x); mx = mpm.erfi(x); gx = gmp.erfi(x)
>>> fx = fpm.erfi(x); ax = apm.erfi(x)
>>> mpm.show([\mathrm{d}x, mx, gx, fx, ax])
dec:  1.629994622601565651061647952076274162779E+3
mpm:  1.629994622601565651061647952076274162779e+3
gmp:  1.629994622601565651061647952076274162779E+03
fpm:  1.62999462260157E+03
apm:  1.629994622601565651061647952076274162779e+3 (7.212e-40%)

An example with complex input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 20; z = '3.0 + 4.0j'
>>> \mathrm{d}z = dec.erfi(z); mz = mpm.erfi(z); gz = gmp.erfi(z)
>>> fz = fpm.erfi(z); az = apm.erfi(z)
>>> mpm.show([\mathrm{d}z, mz, gz, fz, az], aligned=True)
dec: -4.9720260544966036460E-5              + 9.9991066178539168236E-1j
mpm: -4.9720260544966036460e-5              + 9.9991066178539168236e-1j
gmp: -4.9720260544966036460E-05             + 9.9991066178539168236E-01j
fpm: -4.97202605449660E-05                  + 9.99910661785392E-01j
apm: -4.9720260544966036460e-5 (-1.56e-18%) + 9.9991066178539168236e-1 (4.236e-20%)j

Dawson integral, \(F(x)\)

math53.dawson(x)

Returns the Dawson integral \(\displaystyle F(z) = e^{-z^2} \int_0^z e^{t^2} \mathrm{d}t = \frac{\sqrt{\pi}}{2} e^{-z^2} \mathrm{erfi}(z)\). See also Wikipedia [1446], MathWorld [1047], Ehrhardt [309] (3.3.1), NIST [457].

Dawson’s integral is defined by

\[F(x) = e^{-x^2} \int_0^x e^{-x^2} \mathrm{d}t,\]

In terms of either erfi or the Faddeeva function w(z), the Dawson function can be extended to the entire complex plane:[3]

\[F(z)={{\sqrt {\pi }} \over 2}e^{-z^{2}}\mathrm {erfi} (z)={\frac {i{\sqrt {\pi }}}{2}}\left[e^{-z^{2}}-w(z)\right],\]

\(\quad\) \(\quad\)

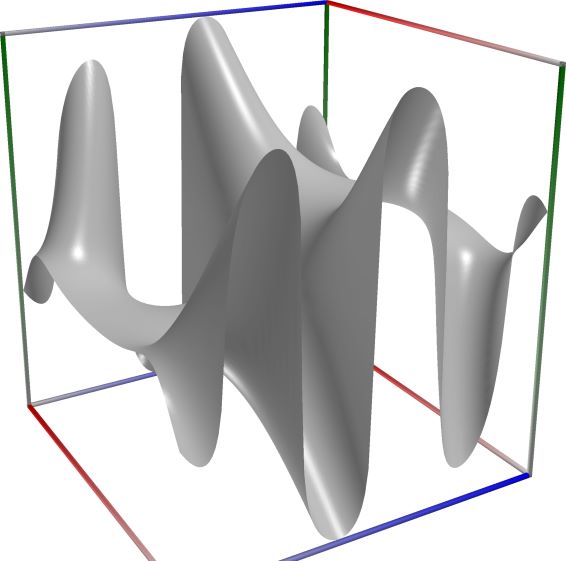

Left figure: real part of the Dawson integral, \(F(x)\). Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

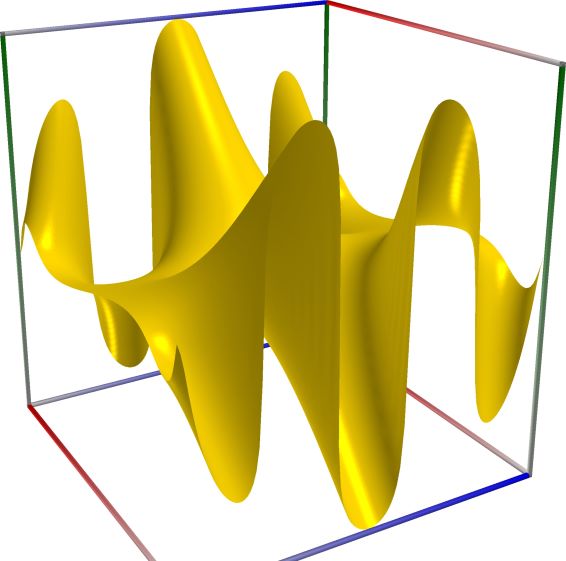

Middle figure: imaginary part of the Dawson integral, \(F(x)\). Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

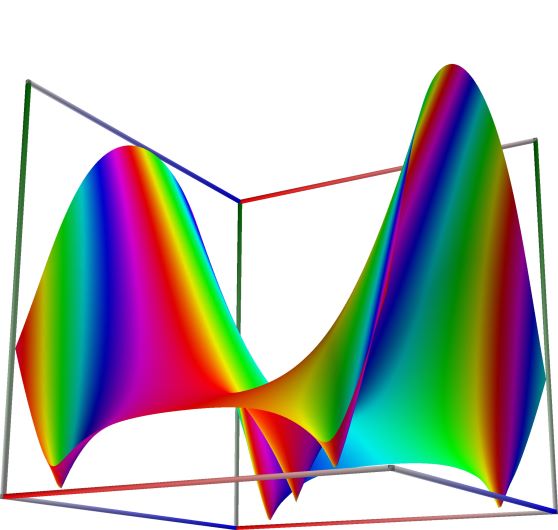

Right figure: absolute value of the Dawson integral, \(F(x)\), with color-coded phase. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.Dawson(0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.Dawson('0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.Dawson(0.5)
Gpr('5.2359877559829887307E-1')
>>> Gpr.Dawson('0.51')
Gpr('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 40; x = 3.0
>>> \mathrm{d}x = dec.dawson(x); mx = mpm.dawson(x); gx = gmp.dawson(x)
>>> fx = fpm.dawson(x); ax = apm.dawson(x)
>>> mpm.show([\mathrm{d}x, mx, gx, fx, ax])
dec:  1.782710306105582873425994922405126302292E-1
mpm:  1.782710306105582873425994922405126302292e-1
gmp:  1.782710306105582873425994922405126302292E-01
fpm:  1.78271030610558E-01
apm:  1.782710306105582873425994922405126302293e-1 (1.409e-37%)

An example with complex input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 20; z = '3.0 + 4.0j'
>>> \mathrm{d}z = dec.dawson(z); mz = mpm.dawson(z); gz = gmp.dawson(z)
>>> fz = fpm.dawson(z); az = apm.dawson(z)
>>> mpm.show([\mathrm{d}z, mz, gz, fz, az], aligned=True)
dec: -8.8004253885450449691E+2               + 4.1216449595391869731E+2j
mpm: -8.8004253885450449691e+2               + 4.1216449595391869731e+2j
gmp: -8.8004253885450449691E+02              + 4.1216449595391869731E+02j
fpm: -8.80042538854505E+02                   + 4.12164495953919E+02j
apm: -8.8004253885450449493e+2 (-4.535e-16%) + 4.1216449595391869602e+2 (4.615e-16%)j

Faddeeva function, \(w(z)\)

math53.faddeeva(z)

Returns the Faddeeva function function

See also Wikipedia [1428], NIST [458].

The Faddeeva function or Kramp function is a scaled complex complementary error function,

\[w(z):=e^{-z^{2}}\operatorname {erfc} (-iz)=\operatorname {erfcx} (-iz)=e^{-z^{2}}\left(1+{\frac {2i}{\sqrt {\pi }}}\int _{0}^{z}e^{t^{2}}{\text{d}}t\right).\]

It is related to the Fresnel integral, to Dawson’s integral, and to the Voigt function.

\(\quad\) \(\quad\)

Left figure: real part of the Faddeeva function. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

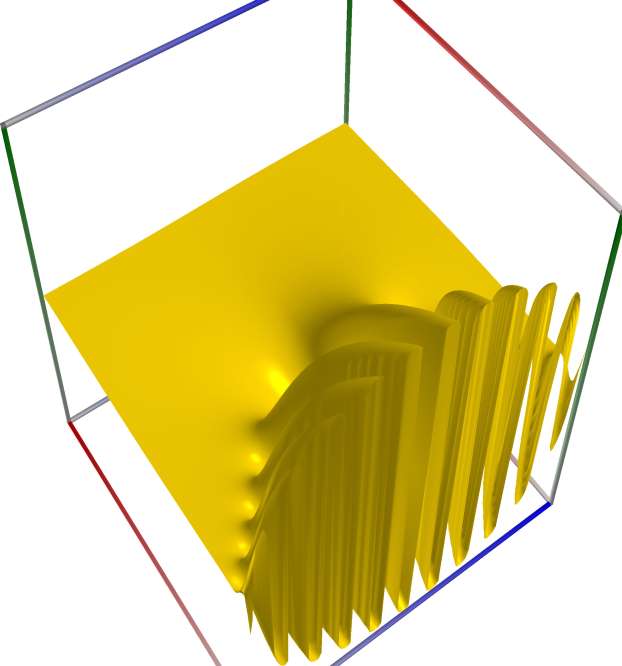

Middle figure: imaginary part of the Faddeeva function. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

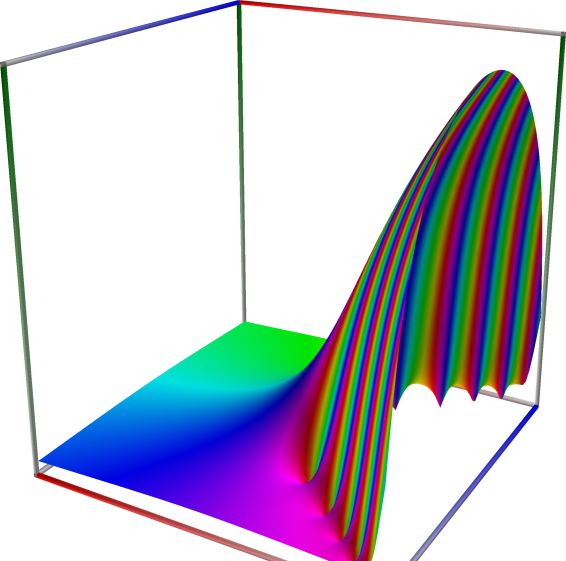

Right figure: absolute value of the Faddeeva function, with color-coded phase. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

An example in Python

>>> from xlcalcnet import XComplex
>>> XComplex.Faddeeva(0.5)
XComplex('5.2359877559829887307E-1')
>>> XComplex.Faddeeva('0.1')
XComplex('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpc
>>> Gpc.Faddeeva(0.5)
Gpc('5.2359877559829887307E-1')
>>> Gpc.Faddeeva('0.1')
Gpc('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 20; x = 3.0
>>> \mathrm{d}x = dec.faddeeva(x); mx = mpm.faddeeva(x); gx = gmp.faddeeva(x)
>>> fx = fpm.faddeeva(x); ax = apm.faddeeva(x)
>>> mpm.show([\mathrm{d}x, mx, gx, fx, ax], aligned=True)
dec: 1.2340980408667954950E-4              + 2.0115731703760038666E-1j
mpm: 1.2340980408667954950e-4              + 2.0115731703760038666e-1j
gmp: 1.2340980408667954950E-04             + 2.0115731703760038666E-01j
fpm: 1.23409804086680E-04                  + 2.01157317037600E-01j
apm: 1.2340980408667954950e-4 (8.378e-20%) + 2.0115731703760038666e-1 (3.158e-19%)j

An example with complex input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 20; z = '3.0 + 4.0j'
>>> \mathrm{d}z = dec.faddeeva(z); mz = mpm.faddeeva(z); gz = gmp.faddeeva(z)
>>> fz = fpm.faddeeva(z); az = apm.faddeeva(z)
>>> mpm.show([\mathrm{d}z, mz, gz, fz, az], aligned=True)
dec: 9.0933904194765342461E-2              + 6.5592330527914277737E-2j
mpm: 9.0933904194765342461e-2              + 6.5592330527914277737e-2j
gmp: 9.0933904194765342461E-02             + 6.5592330527914277737E-02j
fpm: 9.09339041947653E-02                  + 6.55923305279143E-02j
apm: 9.0933904194765342460e-2 (2.911e-19%) + 6.5592330527914277737e-2 (4.035e-19%)j

Fresnel sine integral, \(S(x)\)

ctx.fresnel_s(z)

where ctx is math53, mathc53, ctxflint.

Returns the Fresnel sine integral \(\displaystyle S(x) = \int_0^x \sin\left(\frac{\pi t^2}{2}\right) \, \mathrm{d}t\).

See also Wikipedia [1429], MathWorld [1055], NIST [845],, Ehrhardt [309] (3.3.14), Flint [803], Flint [793], Mpmath [686].

The complex Fresnel sine integral can be expressed using the error function as follows:

\[S(z) = \sqrt {\frac {\pi }{2}} {\frac {1+i}{4}}\left[ \operatorname{erf} \left({\frac {1+i}{\sqrt {2}}}z\right)-i \operatorname{erf} \left({\frac {1-i}{\sqrt {2}}}z\right)\right].\]

See also: https://docs.scipy.org/doc/scipy/reference/generated/scipy.special.fresnel.html#scipy.special.fresnel

\(\quad\) \(\quad\)

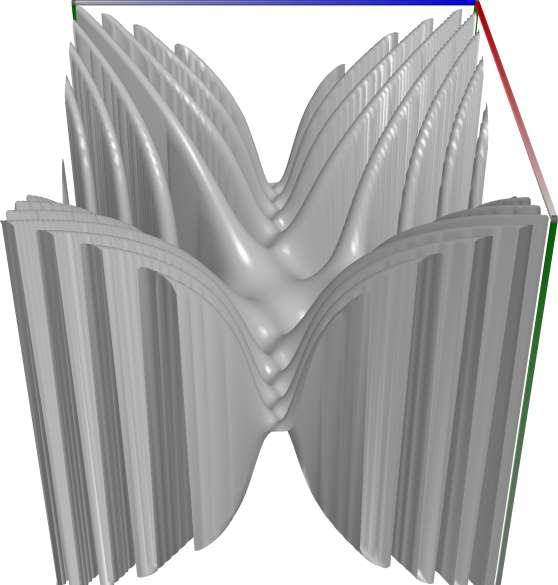

Left figure: real part of the Fresnel sine integral, \(S(x)\). Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

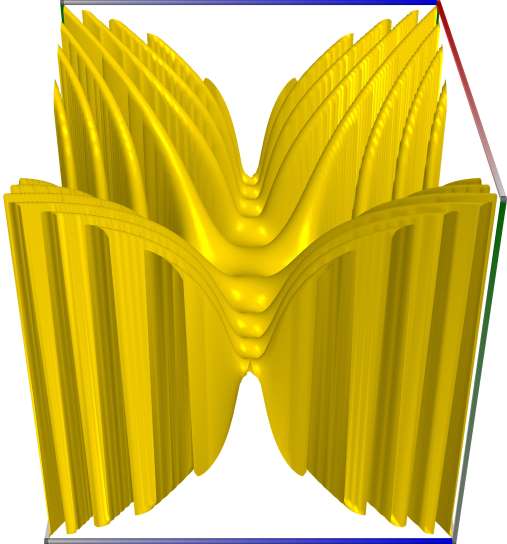

Middle figure: imaginary part of the Fresnel sine integral, \(S(x)\). Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

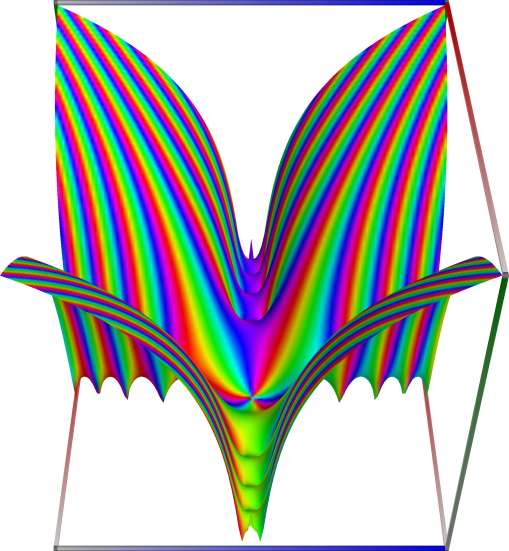

Right figure: absolute value of the Fresnel sine integral, \(S(x)\), with color-coded phase. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.FresnelS(0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.FresnelS('0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.FresnelS(0.5)
Gpr('5.2359877559829887307E-1')
>>> Gpr.FresnelS('0.51')
Gpr('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 40; x = 3.0
>>> \mathrm{d}x = dec.fresnels(x); mx = mpm.fresnels(x); gx = gmp.fresnels(x)
>>> fx = fpm.fresnels(x); ax = apm.fresnels(x)
>>> mpm.show([\mathrm{d}x, mx, gx, fx, ax])
dec:  4.963129989673750360976122652991121038565E-1
mpm:  4.963129989673750360976122652991121038565e-1
gmp:  4.963129989673750360976122652991121038565E-01
fpm:  4.96312998967375E-01
apm:  4.963129989673750360976122652991121038565e-1 (9.252e-39%)

An example with complex input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 20; z = '3.0 + 4.0j'
>>> \mathrm{d}z = dec.fresnels(z); mz = mpm.fresnels(z); gz = gmp.fresnels(z)
>>> fz = fpm.fresnels(z); az = apm.fresnels(z)
>>> mpm.show([\mathrm{d}z, mz, gz, fz, az], aligned=True)
dec: 6.0975480744693149379E+14             + 4.5370167667746719242E+14j
mpm: 6.0975480744693149379e+14             + 4.5370167667746719242e+14j
gmp: 6.0975480744693149379E+14             + 4.5370167667746719242E+14j
fpm: 6.09754807446932E+14                  + 4.53701676677467E+14j
apm: 6.0975480744693149379e+14 (7.82e-20%) + 4.5370167667746719242e+14 (5.255e-20%)j

Fresnel cosine integral, \(C(x)\)

ctx.fresnel_c(z)

where ctx is math53, mathc53, ctxflint.

Returns the Fresnel cosine integral \(\displaystyle C(x) = \int_0^x \cos\left(\frac{\pi t^2}{2}\right) \, \mathrm{d}t\).

See also Wikipedia [1429], MathWorld [1054], NIST [845], Ehrhardt [309] (3.3.14), Flint [803], Flint [793], Mpmath [685].

The complex Fresnel cosine integral can be expressed using the error function as follows:

\[C(z) = \sqrt {\frac {\pi }{2}} {\frac {1-i}{4}}\left[ \operatorname{erf} \left({\frac {1+i}{\sqrt {2}}}z\right)+i \operatorname{erf} \left({\frac {1-i}{\sqrt {2}}}z\right)\right].\]

\(\quad\) \(\quad\)

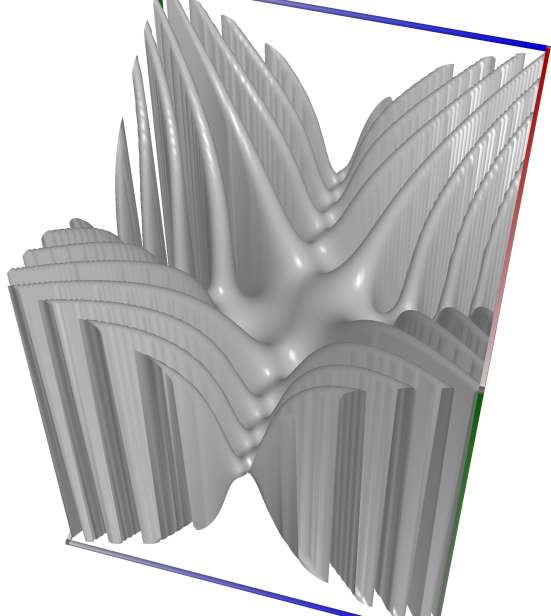

Left figure: real part of the Fresnel cosine integral, \(C(x)\). Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

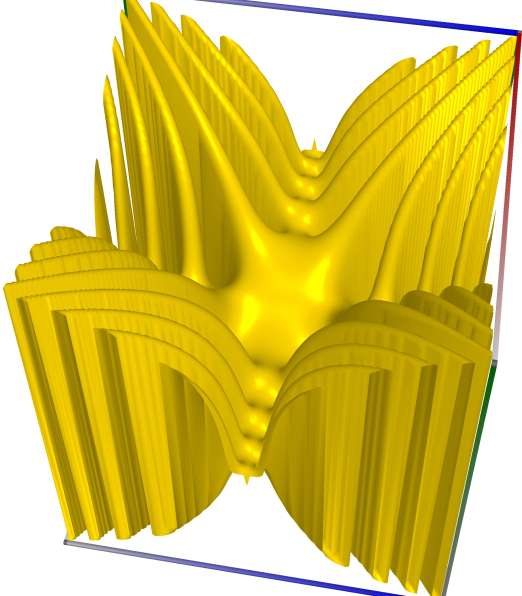

Middle figure: imaginary part of the Fresnel cosine integral, \(C(x)\). Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

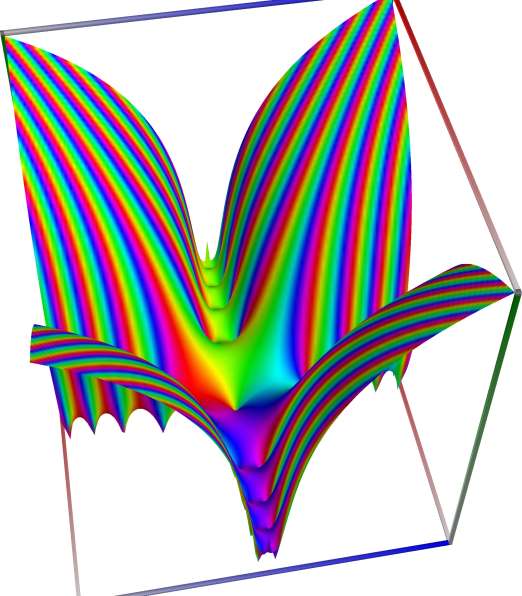

Right figure: absolute value of the Fresnel cosine integral, \(C(x)\), with color-coded phase. Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.FresnelC(0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.FresnelC('0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.FresnelC(0.5)
Gpr('5.2359877559829887307E-1')
>>> Gpr.FresnelC('0.51')
Gpr('5.3518479027559984754E-1')

An example with real input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 40; x = 3.0
>>> \mathrm{d}x = dec.fresnelc(x); mx = mpm.fresnelc(x); gx = gmp.fresnelc(x)
>>> fx = fpm.fresnelc(x); ax = apm.fresnelc(x)
>>> mpm.show([\mathrm{d}x, mx, gx, fx, ax])
dec:  6.057207892976856295561610742871546971452E-1
mpm:  6.057207892976856295561610742871546971452e-1
gmp:  6.057207892976856295561610742871546971452E-01
fpm:  6.05720789297686E-01
apm:  6.057207892976856295561610742871546971452e-1 (9.476e-40%)

An example with complex input:

>>> from xlcalcnet import dec, mpm, gmp, fpm, apm
>>> mpm.dps = 20; z = '3.0 + 4.0j'
>>> \mathrm{d}z = dec.fresnelc(z); mz = mpm.fresnelc(z); gz = gmp.fresnelc(z)
>>> fz = fpm.fresnelc(z); az = apm.fresnelc(z)
>>> mpm.show([\mathrm{d}z, mz, gz, fz, az], aligned=True)
dec: 4.5370167667746769242E+14              - 6.0975480744693099379E+14j
mpm: 4.5370167667746769242e+14              - 6.0975480744693099379e+14j
gmp: 4.5370167667746769242E+14              - 6.0975480744693099379E+14j
fpm: 4.53701676677468E+14                   - 6.09754807446931E+14j
apm: 4.5370167667746769242e+14 (5.255e-20%) - 6.0975480744693099379e+14 (-7.82e-20%)j

Owen’s T function, \(T(h,a)\)

ctx.owen_t(h, a)

where ctx is math53 or ctxflint.

Returns Owen’s T function \(\displaystyle T(h,a) = \frac {1}{2\pi } \int _{0}^{a} f(x) \mathrm{d}x = \frac {a}{4\pi } \int _{-1}^{1} f(ax) \mathrm{d}x, \quad f(x) = {\frac {e^{-{\frac {1}{2}}h^{2}(1+x^{2})}}{1+x^{2}}}, \quad \left(-\infty <h,a<+\infty \right)\).

See also Owen [476], and Patefield and Tand [486], Wikipedia [1460], MathWorld [1088], Ehrhardt [309] (3.3.17).

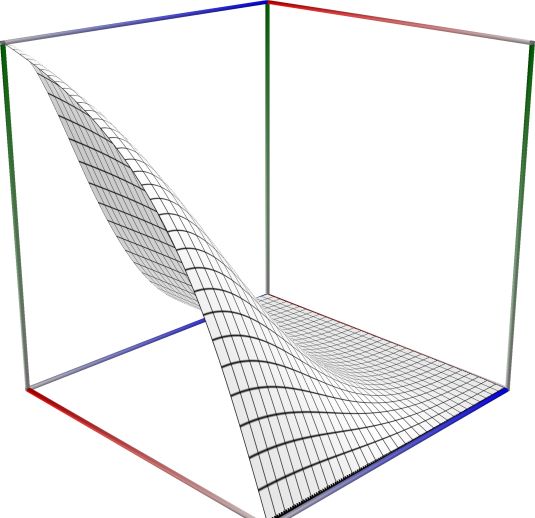

Left figure: real (“silver”) and imaginary (“gold”) part of Owen’s T function, \(T(h,a)\). Camera angles are \(\theta=135^\circ\) and \(\phi = -12^\circ\), camera radius is -2.

An example in Python

>>> from xlcalcnet import xreal
>>> xreal.OwenT(2.5, 0.5)
xreal('5.2359877559829887307E-1')
>>> xreal.OwenT(2.5, '0.51')
xreal('5.3518479027559984754E-1')

An example in Visual Basic

>>> from xlcalcnet import Gpr
>>> Gpr.OwenT(2.5, 0.5)
Gpr('5.2359877559829887307E-1')
>>> Gpr.OwenT(2.5, '0.51')
Gpr('5.3518479027559984754E-1')
